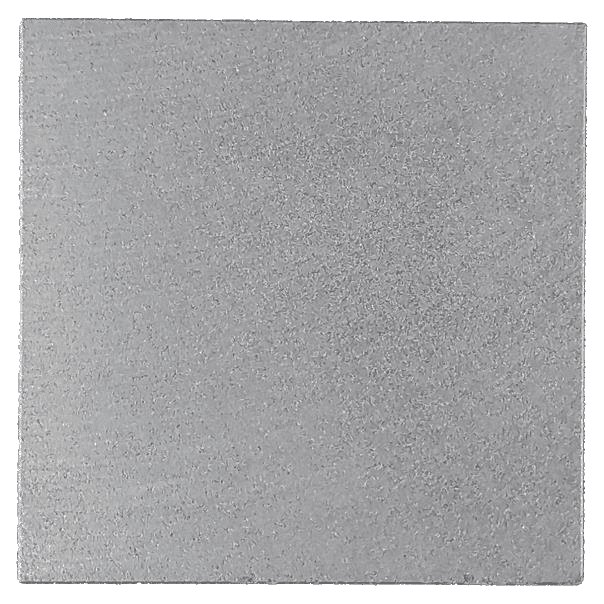

METAPOR ES 240 INOX is an economic alternative to expensive sinter and ceramic plates. It prevents compression resistance. Is suitable for injection moulds and blow mould venting and for vacuum clamping chucks.
METAPOR Air Permeable Composites
When appearance matters, choose Portec METAPOR.
When the look says it all, Portec METAPOR offers significant design flexibility on highly cosmetic or transparent parts without the unsightly look of drilled vacuum holes or surface imperfections. It also allows for the machining of intricate part detail to enhance appearance.
Property：
Density: 4.1 g/cm3
Hardness Shore D: 88
Flexural Strength: 31 N/mm2
E Modulus: 8700 N/mm2
Impact strength: 1 kJ/m2
Coefficient of thermal expansion 25 °C -125°C (77 – 257 °F): 17 x 10-6 mm/mm/°C
Heat conductivity at 20°C: 1.3 W / m-°C
Dimensional Stability: 240°C
Mean pore diameter: 21 µm
Total porosity: 29%
METAPOR ES 240 INOX Standard size chart
|
NO. |
Length X Width X Thickness ，MM |
|
1 |
500 x 500 x 10 |
|
2 |
500 x 500 x 15 |
|
3 |
500 x 500 x 20 |
|
4 |
500 x 500 x 25 |
|
5 |
500 x 500 x 30 |
|
6 |
500 x 500 x 35 |
|
7 |
500 x 500 x 40 |
|
8 |
500 x 500 x 50 |
|
9 |
500 x 500 x 60 |
|
10 |
500 x 500 x 70 |
|
11 |
500 x 500 x 80 |
|
12 |
500 x 500 x 90 |
|
13 |
500 x 500 x 100 |
|
14 |
500 x 500 x 200 |
|
METAPOR ES 240 INOX |
|
|
1 |
1000 x 500 x 10 |
|
2 |
1000 x 500 x 15 |
|
3 |
1000 x 500 x 20 |
|
4 |
1000 x 500 x 25 |
|
5 |
1000 x 500 x 30 |
|
6 |
1000 x 500 x 35 |
|
7 |
1000 x 500 x 40 |
|
8 |
1000 x 500 x 50 |
|
9 |
1000 x 500 x 60 |
|
10 |
1000 x 500 x 70 |
|
11 |
1000 x 500 x 80 |
|
12 |
1000 x 500 x 90 |
|
13 |
1000 x 500 x 100 |
|
14 |
1000 x 500 x 200 |
